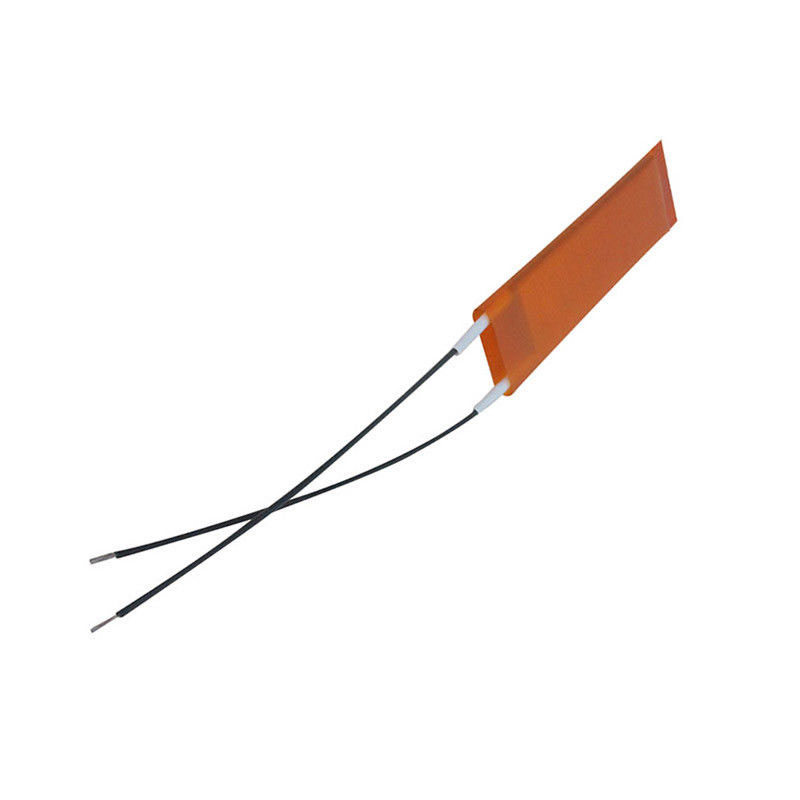

Hair Straightener 7C 110V PTC Thermistor 16mm Yellow Insulating Thin Film Thermistor
Yellow Insulating Film Wired PTC Thermistor 110V 240V Heater For Hair Straightener
I General Of The Yellow Insulating Film Wired PTC Thermistor
That the PTC core series(with insulated paper) is one kind of surface insulation new model PTC fever heat body. Metal electrode having assembled a pair of belt fuse in two flanks side of average PTC component, yellow paper of insulation , structure are still simple in the metal electro de outward appearance on envelop; Unnecessarily plus ch-arging the temperature device for being Okconstant temperature fever heat and the insulation intensity are high , reliable , sustainable safe the power sta- bility generating heat , usage voltage range are broad , life time is long, another external form the dim- ension is nimble various, may need according to customer reality book make various type specification.
Process flow: Weighing → Ball Milling → Drying → Pre-sintering Synthesis → Weighing → Secondary Ball Milling → Drying and Granulating → Forming → Sintering → Upper Electrode → Inspection → Packaging
II Application Of The Yellow Insulating Film Wired PTC Thermistor
► Hair straightener
► Hair crimper
► Wax melting heater
► Vapor generator
► Humidifier
► Water boiler
► Liquid warmer
► Coffee warmer
► Polymer press-coating heater
► Hot glue gun
► Hocolate extruder
► Shoe dryer
► Hand/foot warmer
► Massager
► Physical therapy heater.
III Structure Of The Yellow Insulating Film Wired PTC Thermistor

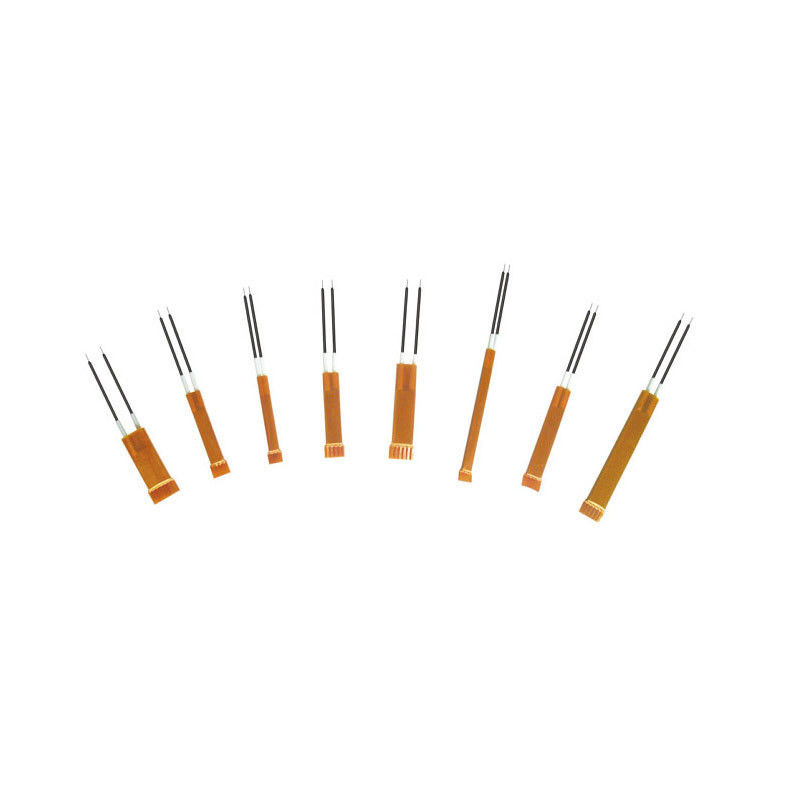

IV Universal Product Specification - Inflexibility heater
| Part number | Surface temperature /℃ | Length | Width | Thickness | High pot /V | Rate voltage /V |
| /mm | /mm | /mm |
| YD-75CL16W11T3.5-120VK | 75 | 16 | 11 | 3.5 | 3750 | 100~120 |
| YD-80CL16W11T3.5-220VK | 80 | 16 | 11 | 3.5 | 3750 | 220~240 |
| YD-105CL15W9T3.3-220VK | 105 | 15 | 9 | 3.3 | 3750 | 100~240 |
| YD-180CL24W15T3.3-220VK | 180 | 24 | 15 | 3.3 | 3750 | 100~240 |
| YD-190CL70W13T3.3-220VK | 190 | 70 | 13 | 3.3 | 3750 | 100~240 |
| YD-220CL60W13T3.3-220VK | 220 | 60 | 13 | 3.3 | 3750 | 100~240 |
| YD-220CL60W13T3.3-120VK | 220 | 60 | 13 | 3.3 | 3750 | 100~120 |
| YD-220CL35W10T3.3-220VK | 220 | 35 | 10 | 3.3 | 3750 | 100~240 |
| YD-250CL30W13T3.3-220VK | 250 | 30 | 13 | 3.3 | 3750 | 100~240 |
| YD-255CL48W10T3.5-220VK | 255 | 48 | 10 | 3.5 | 3750 | 100~240 |
| YD-255CL60W15T3.5-220VK | 255 | 60 | 15 | 3.5 | 3750 | 100~240 |
| YD-260CL60W13T3.3-220VK | 260 | 60 | 13 | 3.3 | 3750 | 100~240 |
| YD-260CL60W13T3.3-120VK | 260 | 60 | 13 | 3.3 | 3750 | 100~120 |
| YD-260CL24W15T3.3-220VK | 260 | 24 | 15 | 3.5 | 3750 | 100~240 |
| YD-260CL48W15T3.3-220VK | 260 | 48 | 15 | 3.5 | 3750 | 100~240 |
| YD-260CL35W6T3.3-220VK | 260 | 35 | 6 | 3.3 | 3750 | 100~240 |
| YD-260CL45W24T3.3-220VK | 260 | 45 | 24 | 3.5 | 3750 | 100~240 |
| YD-270CL70W13T3.3-220VK | 270 | 70 | 13 | 3.3 | 3750 | 100~240 |
Notice:
1) The surface temperature can be selected between 50℃~280℃, the tolerance of surface temperature is ±7℃ usually. Rate voltage can be 6V~600V, AC or DC.
2) For getting rapid temperature rising, larger heating power, several PTC pellets are used to assemble into a larger one.
3) There are two structures of insulators, one is twining polyimide film around the heating plate; another is coating a film pipe around the heating plate, and then thermal shrinking.
V Dimension Of The Yellow Insulating Film Wired PTC Thermistor
| Dimension Number. | Length | Width | Thickness | Dimension Number. | Length | Width | Thickness |
| /mm | /mm | /mm |
| /mm | /mm | /mm |
| 1 | 15 | 9 | 2.0~3.7 | 20 | 48 | 13 | 2.0~3.7 |
| 2 | 16 | 11 | 2.0~3.7 | 21 | 48 | 15 | 2.0~3.7 |
| 3 | 22 | 11 | 2.0~3.7 | 22 | 50 | 13 | 2.0~3.7 |
| 4 | 23 | 13 | 2.0~3.7 | 23 | 50 | 24 | 2.0~3.7 |
| 5 | 24 | 6 | 2.0~3.7 | 24 | 50 | 30 | 2.0~3.7 |
| 6 | 24 | 8 | 2.0~3.7 | 25 | 50 | 38 | 2.0~3.7 |
| 7 | 24 | 10 | 2.0~3.7 | 26 | 56 | 11 | 2.0~3.7 |
| 8 | 24 | 15 | 2.0~3.7 | 27 | 58 | 6 | 2.0~3.7 |
| 9 | 30 | 5 | 2.0~3.7 | 28 | 58 | 13 | 2.0~3.7 |
| 10 | 30 | 13 | 2.0~3.7 | 29 | 60 | 10 | 2.0~3.7 |
| 11 | 30 | 48 | 2.0~3.7 | 30 | 60 | 13 | 2.0~3.7 |
| 12 | 35 | 6 | 2.0~3.7 | 31 | 60 | 15 | 2.0~3.7 |
| 13 | 35 | 10 | 2.0~3.7 | 32 | 70 | 8 | 2.0~3.7 |
| 14 | 35 | 11 | 2.0~3.7 | 33 | 70 | 10 | 2.0~3.7 |
| 15 | 35 | 13 | 2.0~3.7 | 34 | 70 | 13 | 2.0~3.7 |
| 16 | 36 | 15 | 2.0~3.7 | 35 | 70 | 15 | 2.0~3.7 |
| 17 | 45 | 24 | 2.0~3.7 | 36 | 70 | 30 | 2.0~3.7 |
| 18 | 48 | 6 | 2.0~3.7 | 37 | 74 | 30 | 2.0~3.7 |
| 19 | 48 | 10 | 2.0~3.7 | 38 | 99 | 16 | 2.0~3.7 |
VI Universal Product Specification - Flexibility Heating Belt
Notice:
1) The surface temperature can be selected between 50℃~100℃, the tolerance of surface temperature is ±5℃ usually. Rate voltage can be 6V~400V, AC or DC. Customer designed shapes are possible.
2) This product is assembled with many pieces of PTC heating elements, with a shrink tube tightened. It can be bended. It can be very long, length between 0.1 ~ 20 m , width between 6 ~ 16 mm, thickness between 2.5 ~ 3.5 mm. It is uesd for large area constant temperature heating.
VII PTC can be used in these fields below
a.Prevent frostbite and wet: outdoor preventing frostbite for electric equipment, water pipe, oil pipe, electric circuit.
b.Drying, humidifying: shoe, clothes, tea hot fan dryer, wardrobe, bookcase, shoebox, moistureproof heater.
c.Boiling water warming: reservior water heater, shower bath, liquid heater, water transflux heater, tankless shower water heater, instant water heater, footbath, three phase voltage, multi-voltage heating tube, inrustant-withstanding, dry-operating heating tube, stainless steel, titanium, 304, 316, heating tube, solar, air energy water heater, solar panel heating tube.
d. Hairdressing: hair curler, hot comb, hair straightener, wax melter, moulter, hair wave plate.
e.Agriculture stockbreeding: hatcher, seed budding warmer, tea dryer, warmer for animal, fish, plant.
f.Car, motor car: Air heater for car, pre-heater for diesel tank, filter, pipe, heater for carburetor, battery pre-heating, heating system for electric car, hybrid energy vehicle.
g. Warming, health care: warmer for hand, foot, face, waist, warmer with or without fan for bathroom, bedroom, shop, air condition, massager, sauna bath, infrared wamer, radiator warmer with running water, oil, warmer with underground pipe, warmer in bed mattess.
f. Home appliance: mosquito killer, travel iron, perfume fragrant vaporator.
i. Machine, tool: electric iron, hot glue gun, heating for sensor, constant temperature heating plate for PCB, photo film coater, plastic bag capper, drying room, binding machine for book, plastic melter, oven, heating for compressed air, railway carriage, plating bath, teflong, 2520, 800 incoloy, heating tube, AC and DC heating, heating with lithium battery, high power heating tube, mini heating plate.
j. Food, drink: boiler and wamer for coffee, drink water, tea, wine, milk, soya-bean milk, food, coffee maker and warmer, food roaster, nursing bottle, fermenting case for food, acidophilus milk, drink automatic saler, sugar and chocolate melter.
k. Vapor: sauna bath, skin vaporator, humidifier, face wetting.
o. Medical treatment: physical therapy, medical treatment, mainline heater, infrared physical therapy equipment, plant medicament dryer.
p.Others: temperature switch, delay switch, electronic cigarette.
